Price:
$89.99 CAD

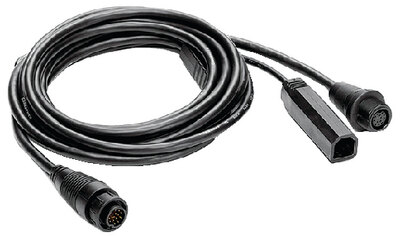

MEGA 360 2D/MDI 14-PIN Y-CABLE (HUMMINBIRD)
-
Stock # 137-7201081
1 Call/Text to confirm availability
Overview
Specifications
Contact Information
Location
This Y cable allows for the connection of a MEGA 360 Imaging transducer and a 14-pin HW / MDI\ transducer (including Built-in MEGA Imaging) to the same compatible Humminbird fish finder. 30\" (76 cm) cable on Dual Sprectrum CHIRP side of cable 10\' (3 m) cable on the MEGA 360 side. Compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors.
Category Name
Electronics-fishfinders, Chartplotters, Radars, Autopilots, Etc.
Sale Type
New
Manufacturer
Humminbird
Manufacturer Qty
1
UPC
82324054860
Hazard
9
LNSuse1
5897119
LNSuse3
24275
ModuleID
PF_5897115
DMPPartNo
45-2583
KMSPartNo
HUM 7201081
AS400Description
14 M360 2DDI Y
VendorItemNumber
720108-1
WebLongDescription
- Combines MEGA 360 Imaging transducer and 14-pin Dual Spectrum / MEGA Imaging+ transducers (including Built-in MEGA Imaging) into one 14-pin plug for connection to the same, compatible SOLIX fish finder, or HELIX fish finder with additional AD HELIX M360 adapter.
- For use when connecting a MEGA 360 Imaging transducer to a compatible SOLIX or HELIX fish finder, in conjunction with a Built-in MEGA Imaging transducer or external 14-pin HW /MDI+ transducer.
- If this cable is being used with a HELIX fish finder, then the #720106-1 AD HELIX M360 adapter must be attached between this y-cable and the HELIX unit, to the single plug end of the Y cable.
- Compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
- 30" (76 cm) cable on Dual Sprectrum CHIRP side of cable
- 10' (3 m) cable on the MEGA 360 side
- Waterproof, screw-on, 14-pin connectors
- 1-Year Limited Warranty
WebShortDescription
Humminbird 7201081 Y Cable
